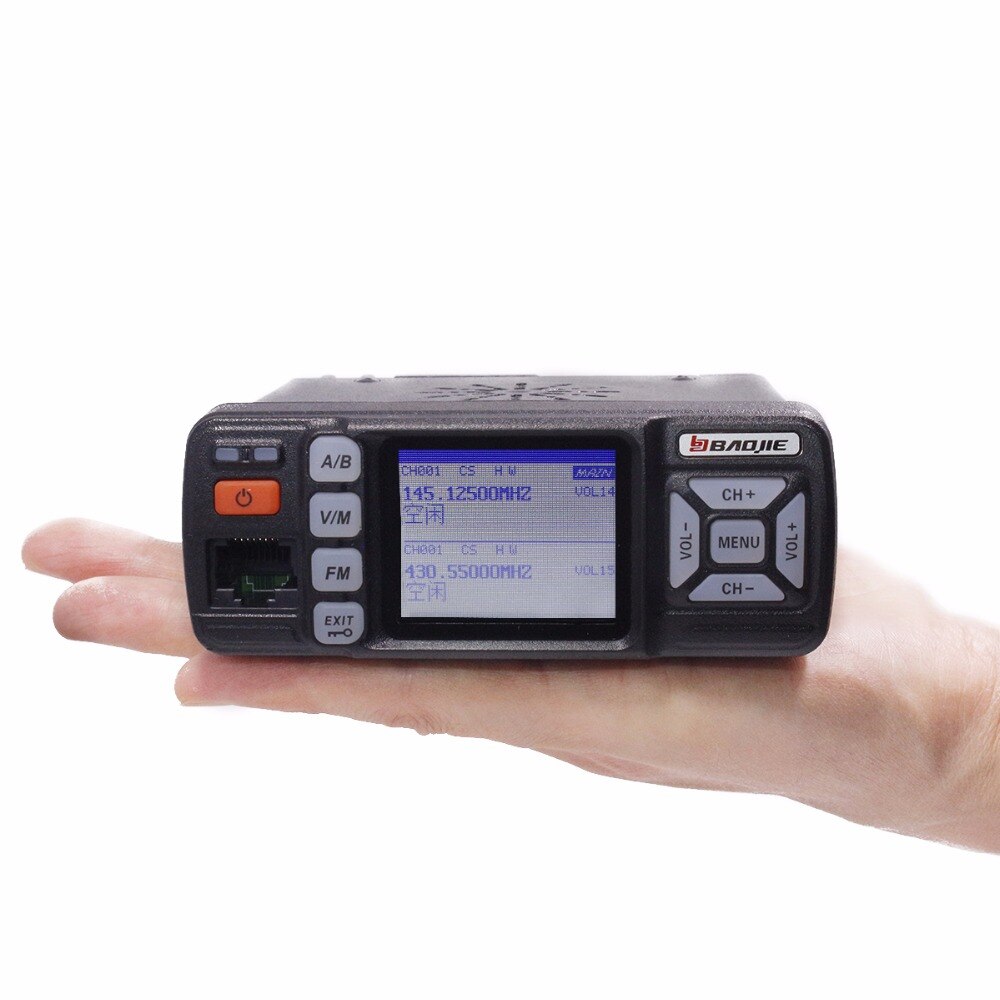

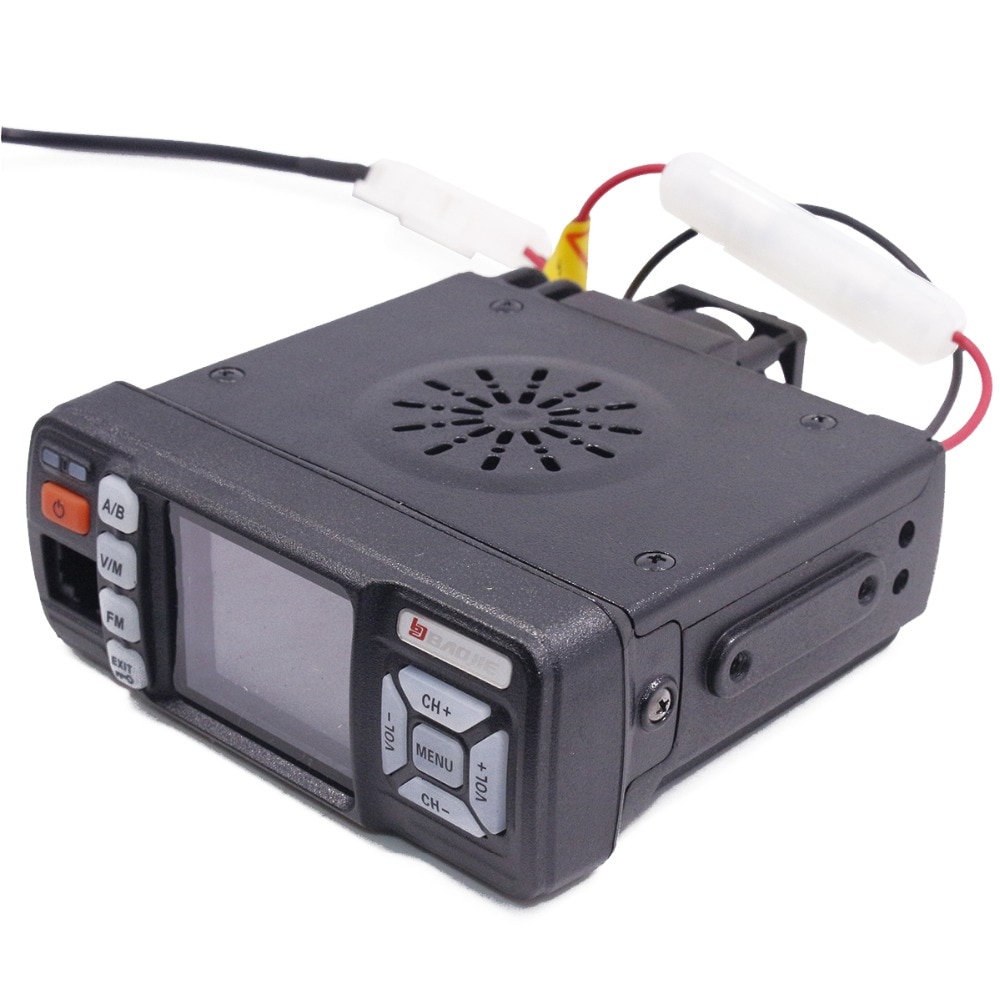

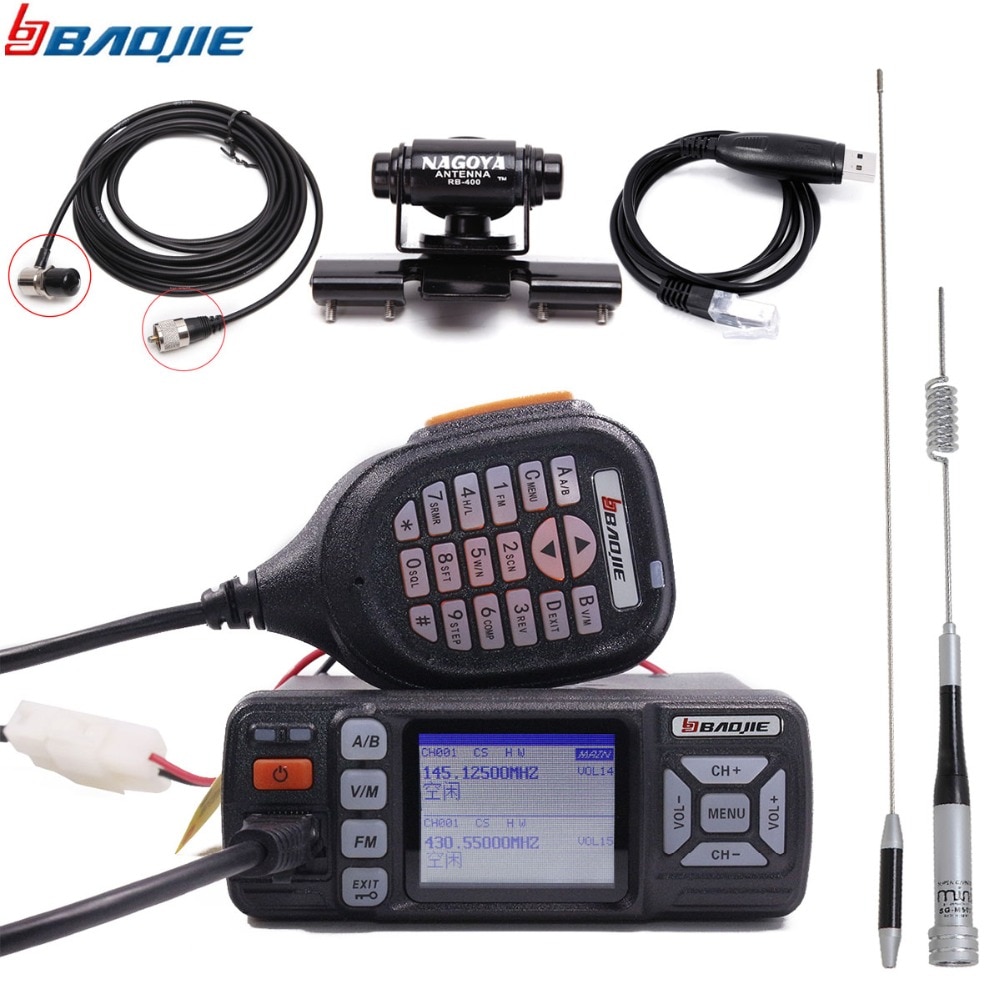

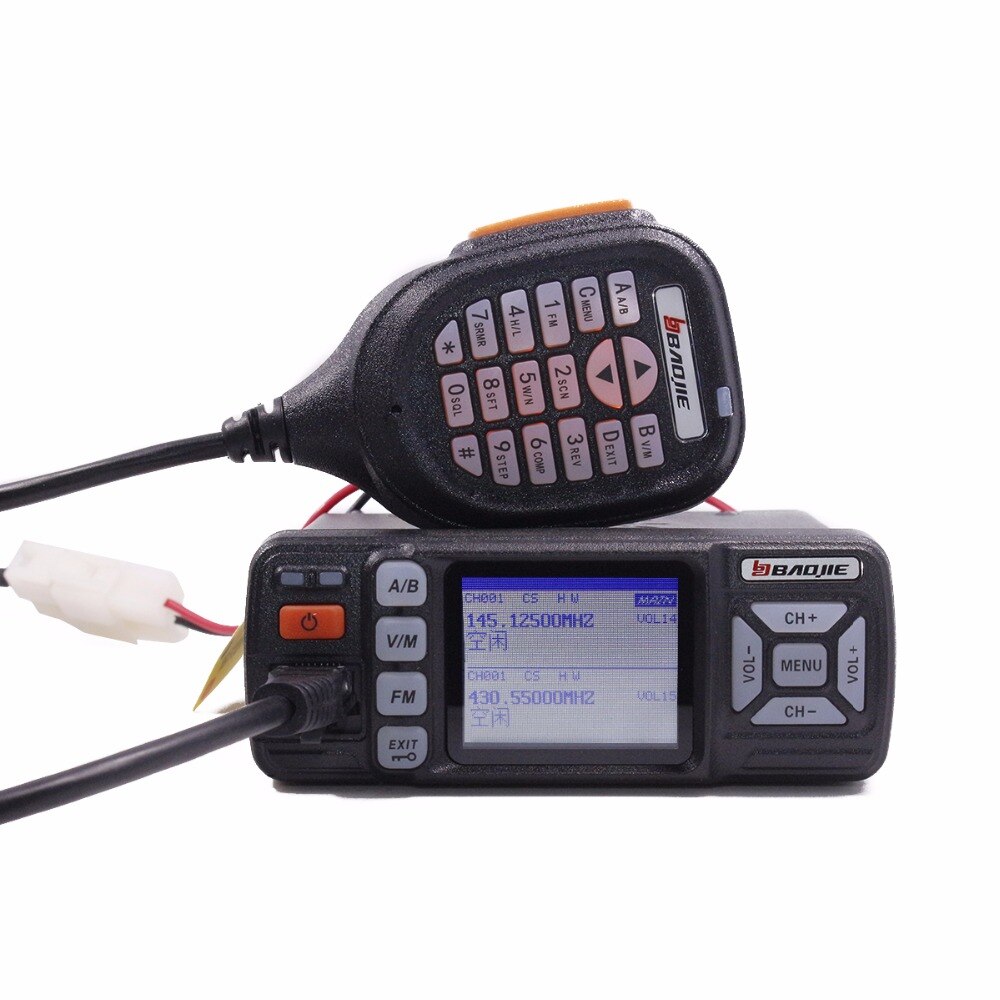

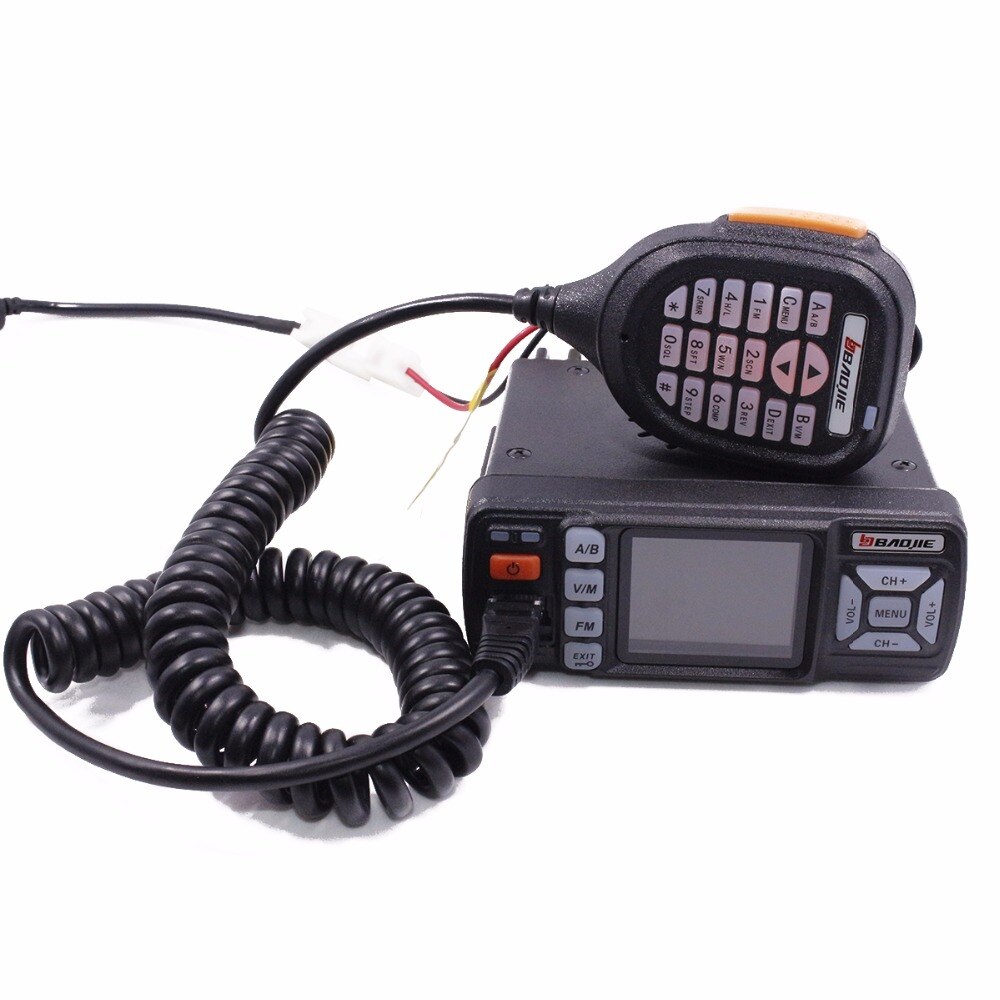

Baojie BJ-318 Single/Dual Receive VHF UHF Dual Band Mobile Radio 25W Walkie Talkie Car Radio Upgrade of BJ-218 Z218
Hot sot:
1) Upgrade Cool LCD Display, Fashionable and Convenient !
2) Mini Size Portable !
3) Unique Free Setttings of Running / Single / Dual Receive !

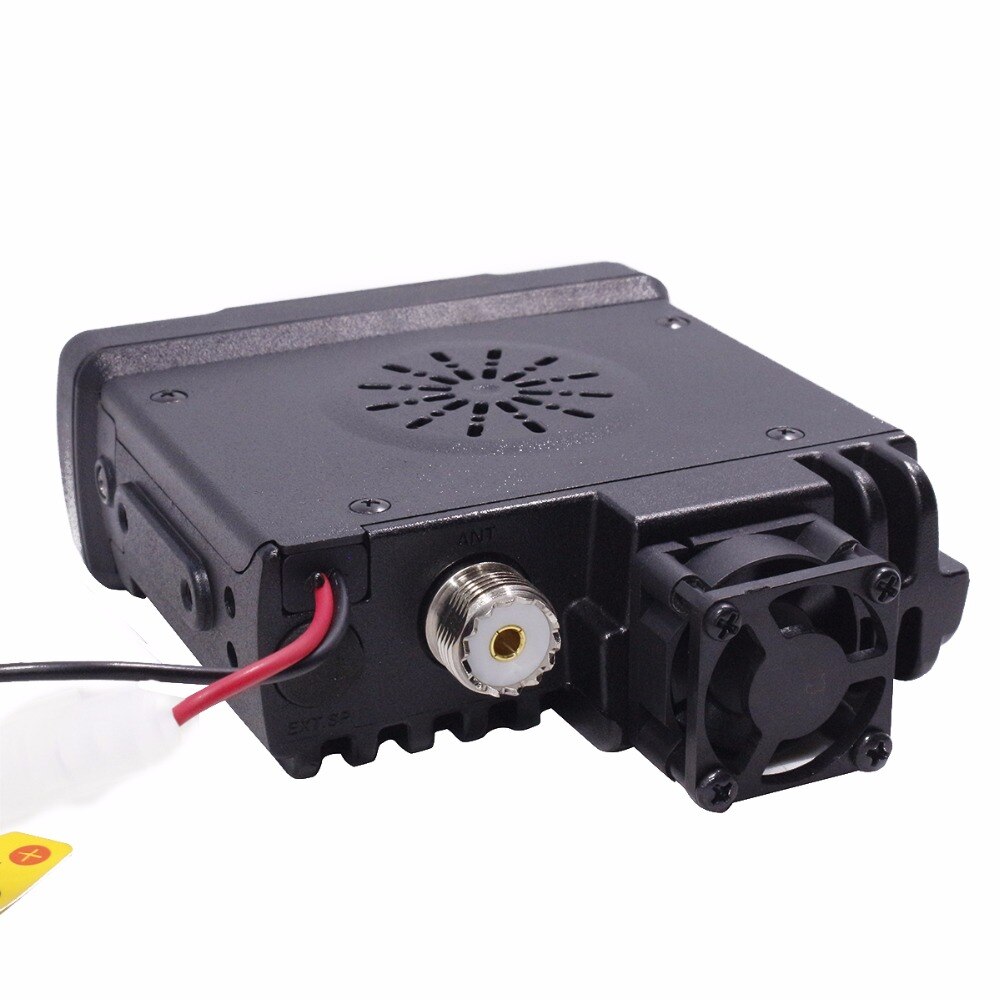

4) Internal Cooling Fan !
5) Of Course, Favorable Price !
Caratteristica:
Dual display, dual standby & Dual Track
Frequency adjusting
Working mode selecting
Scrambling encryption function
Voice companding function
Frequency/Channel scan function
Reverse frequency setting
Busy channel lock-out (BCL)
Time-out timer (TOT)
High/low power selectable
CTCSS/DCS encoding and decoding
Broadband (Wide)/Narrow band (Narrow) selectable
Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz
Level Threshold “Squelch” adjustable from 0 to 9
Tri-color background light selectable
PC software programmable
FM radio function
Operation for manual channel memory and delete
Automatic lock-out
DTMF signal setting
DTMF signal
PTT ID Setting
Remote control function
Remote monitoring
Remote stun
Remote killaking
Remote reliving
Alarm function
Group calling function
Team calling function
Selected calling function
Function key guide voice(BEEP)
SFT/Slip frequency direction
OFFSET/Slip frequency
1000Hz/1450Hz/1750Hz/2100Hz selecting
Specifica:
tutto il nostro articolo sono di marca Notizie |
||
modello |
BJ-318 |
|
colore |
nero |
|
Gamma di frequenza |
UHF: 400-470 MHz & VHF: 136-174 MHz |
|
sistema |
F3E (FM) |
|
capacità di canale |
256 |
|
tensione di ingresso |
DC13.8V (± 15%), messa a terra negativi |
|
potenza di uscita |
H: 25 W, M: 10 W, L: 5 W |
|
Spaziatura Tra I canali |
12.5 KHz/25 KHz |
|
Spaziatura di frequenza |
2.5/5/6.25/10/12.5/15/25/50 KHz |
|
Squelch way |
CTCSS/DCS/DTMF |
|
Antenna impedenza |
50 ohm |
|
stabilità di frequenza |
± 5ppm @-10 ° C ~ + 60 ° C |
|
temperatura di funzionamento |
-20 ° C ~ + 60 ° C (-4 ° F ~ + 140 ° F) |
|
Max. deviazione di Frequenza |
± 5 KHz |
|
rumore di radiazione |
< =-60dB |
|
flessibilità |
< = 0.2Uv (12dB SINAD) |
|
Max. uscita Audio |
2 W @ 8 ohm distorsione 5% |
|
corrente di funzionamento |
ricevere |
0.3A (SQL) |
trasmettere |
5A (Max.) |
|
Dimension |
105x30x106mm (non compreso il outparts Lxaxp) |
|
peso |
circa 0.5 kg
|

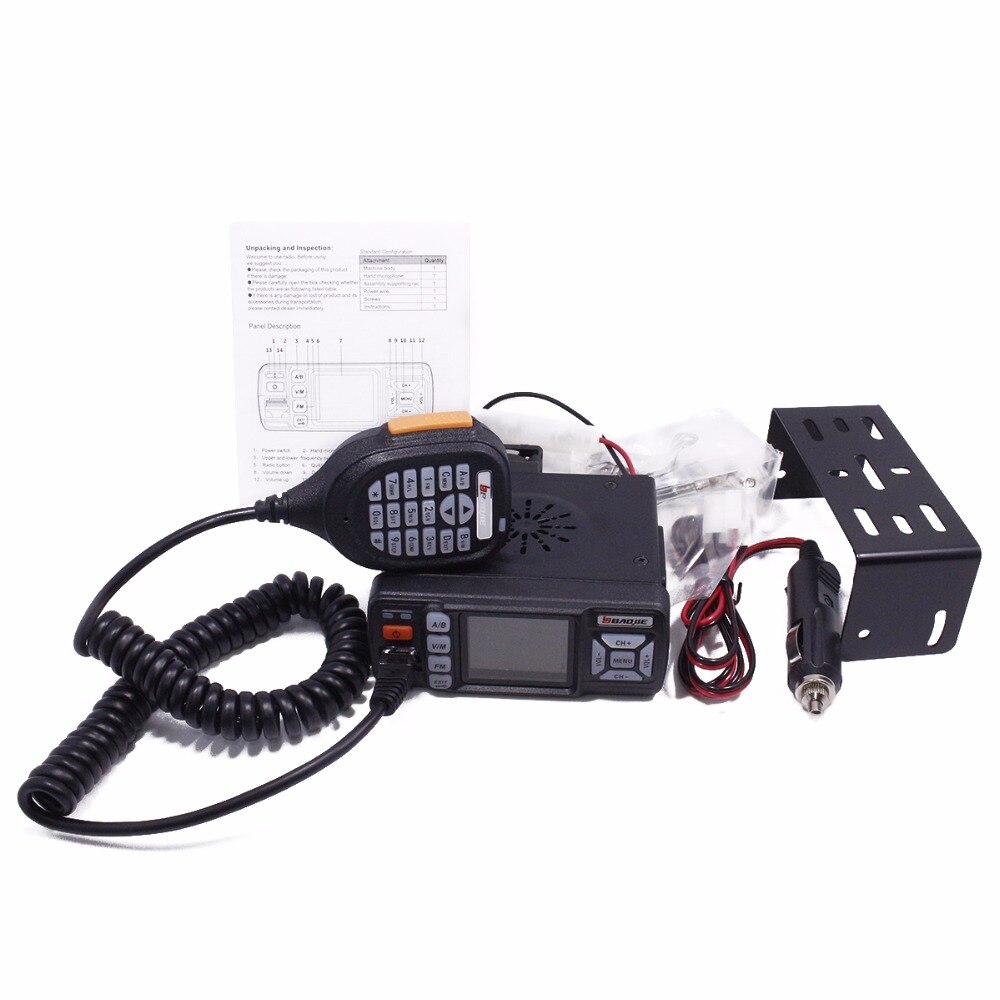

Factory Standard:
1 x BJ-318 ( 136-174/400-470MHz ) Mini Mobile Radio Transceiver

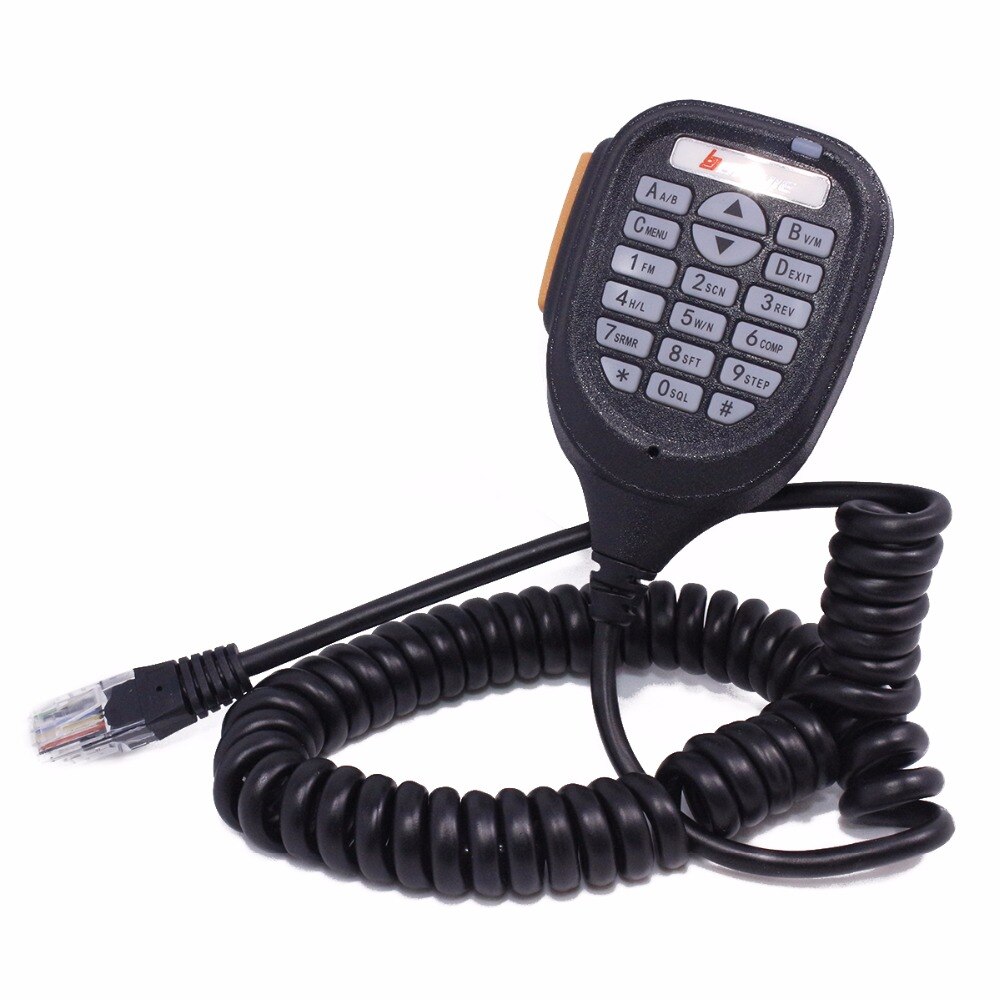

1 x Microphone
1 x Car Power Cable
1 x Mounting Bracket
1 x Screws
1 x User's Manual
